How a PCB Quote Is Calculated: Material, Panel, and NRE

Two fabricators quote the same Gerber package. One returns $4.80 per board, the other $7.10. Neither is lying. They are pricing different things: different panel utilization, a different laminate source, a different test coverage, and a different assumption about yield.

Most buyers compare the bottom line. That is how a cheap quote turns into an expensive project six weeks later.

This article breaks a PCB quote into the five blocks every fabricator prices, walks through a worked example, and gives you a normalization checklist to use before you award the order.

The factory prices panels, not boards

A PCB is fabricated on a panel, not as an individual board. Panel size is fixed by the lamination press and the process equipment — commonly 18 × 24 in (457 × 610 mm) or 21 × 24 in.

Your board is arrayed on that panel with routing spacing, tooling strips and borders. Two consequences follow:

1. The unit material cost is the panel price divided by the number of good boards per panel — not by board area.
2. A board that arrays 20-up and a board 10 mm larger that arrays 15-up can differ by more than 30% in price per board, although their areas differ by only 21%.

Panel utilization is simple to calculate:

Utilization = (board area × boards per panel) ÷ panel area

Take a 100 × 100 mm board on an 18 × 24 in panel with 5 mm routing spacing. The array is 4 columns × 5 rows = 20 boards, or about 72% utilization (20 × 10,000 mm² ÷ 278,770 mm²).

Now grow the board to 110 × 110 mm — 10 mm on each side. With the same spacing the pitch becomes 115 mm, and the array drops to 3 × 5 = 15 boards, about 65% utilization. The board is 21% larger in area, but the same panel now yields 25% fewer boards, so material cost per board rises by a third. The extra 7 points of utilization loss are pure panel waste.

This is why a 10 mm shrink can be worth more than a 10% quantity increase, and why "can you reduce the rail?" is a legitimate cost question rather than a nuisance.

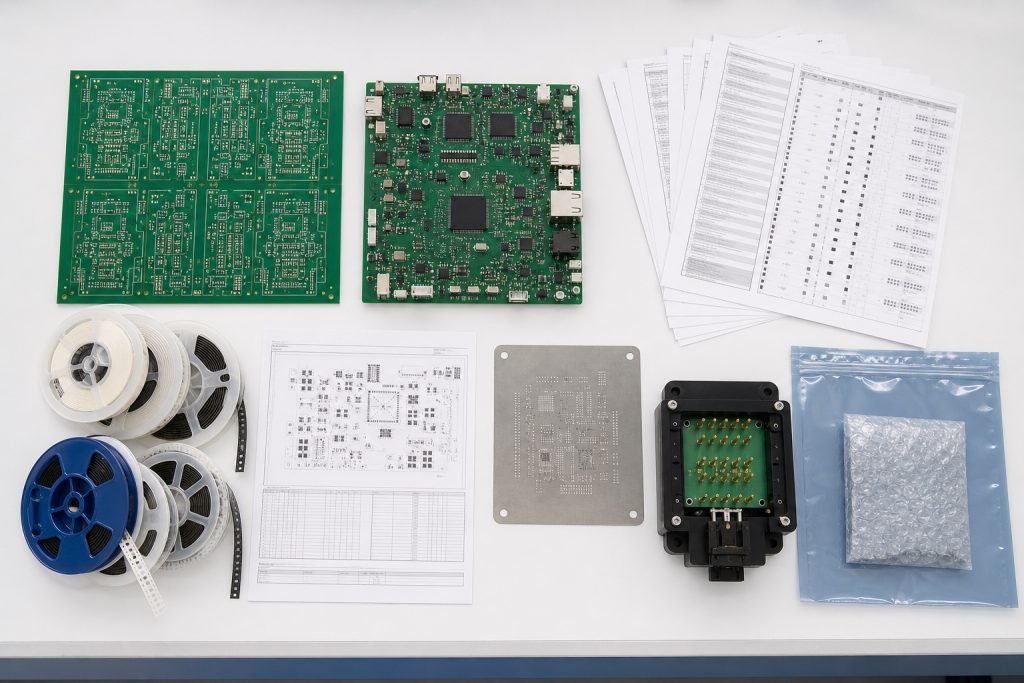

The five blocks in every quote

A quote that only gives you a unit price hides which of these blocks is driving the number. Ask for the breakdown — a fabricator who cannot produce one is guessing.

Material cost: the utilization lever

The material line is not "laminate price per square meter." It is:

Material cost per board = panel price ÷ (boards per panel × yield)

Using an illustrative 4-layer FR4 panel at $40, 20 boards per panel, and 95% yield:

• $40 ÷ 20 = $2.00 per board at 100% yield
• $40 ÷ (20 × 0.95) = $2.11 per board at 95% yield

Small yield differences look trivial per board and become significant at 5,000 pieces. This is also where laminate selection shows up: a high-Tg or halogen-free laminate can add 15–30% to the material line, and a high-frequency material can multiply it.

Process cost: what actually moves the number

Process cost is driven by the number of steps and the yield risk each step carries — not only by board area. In rough order of impact:

• Layer count. Each additional pair adds inner-layer imaging, lamination, drilling and plating. An 8-layer board is not "twice a 4-layer" in cost; it is a different process flow.
• Hole count and aspect ratio. Thousands of small holes cost more than hundreds of large ones. Aspect ratio above 8:1 or 10:1 narrows the process window and slows drilling.
• Microvias and sequential lamination. Laser-drilled vias and multiple lamination cycles are the main cost driver in HDI. A 2+N+2 build is not a 1+N+1 build with more layers.
• Via fill and via-in-pad. Resin plugging, planarization and capping add steps and inspection.
• Impedance control. Test coupons, stackup tuning and TDR measurement add engineering and test time.
• Surface finish. Lead-free HASL is the lowest-cost option. ENIG adds a nickel-gold process. Hard gold on edge contacts adds more.
• Special processes. Backdrilling, castellation, heavy copper, press-fit holes and tight tolerances each add handling and a yield penalty.

Yield losses compound across steps. A process with forty steps and 2% loss per step does not end at 92% — it ends closer to 45%. That is why a fabricator's real cost is tied to its process control, not only to its material purchasing.

NRE: the block buyers forget

NRE (non-recurring engineering) covers the one-time work: tooling and fixtures, test program generation, stencil (for assembly), first-article inspection, and engineering review.

NRE is fixed. Divided by quantity, it dominates small orders:

This is the entire explanation for the "why is 10 pieces so expensive?" question. Nothing about the tenth board costs $12. The first one does.

A worked example

Assumptions (illustrative — replace with current data):

• 4-layer FR4, 1.6 mm, 1 oz, ENIG
• 100 × 100 mm, 20-up on an 18 × 24 in panel
• Panel price $40; fabrication $60 per panel; test $0.30 per board; NRE $120

The 10-to-100 drop is 62%. It is not a volume discount — it is NRE amortization. Real volume pricing starts after NRE is absorbed, and comes from panel-price breaks, improved yield and nesting.

Why two quotes differ by 40%

When quotes diverge, the gap is almost always in one of these:

1. Different utilization. One supplier arrays 20-up, the other 15-up.
2. Different laminate source. Brand-name versus equivalent.
3. Different yield assumption. One prices at 95%, the other at 85% and builds in margin.
4. Different test coverage. 100% electrical test and impedance coupons versus sample testing.
5. Different finish thickness. ENIG at 1–3 µin versus 3–6 µin is not the same product.
6. Different acceptance class. IPC Class 2 versus Class 3 changes inspection and scrap.
7. Different Incoterm and lead time. Ex-works versus DDP, 5 days versus 15.
8. Hidden NRE. Quoted separately, or already buried in the unit price.

How to compare quotes fairly

Send all three suppliers the same package, and ask each to confirm:

• Stackup, laminate brand and Tg
• Copper weight per layer
• Surface finish and thickness
• IPC acceptance class (2 or 3)
• Test coverage (100% e-test, impedance coupons, AOI)
• Whether NRE is included, and what it covers
• Incoterm, lead time and expedite cost
• Panel utilization or boards per panel

A supplier who will not state boards-per-panel is usually not optimizing your cost — they are optimizing their margin.

FAQ

Why is the price per board so much higher for 10 pieces?
NRE is fixed. At 10 pieces, $120 of tooling and programming adds $12 to every board. At 1,000 pieces it adds $0.12.

Is the cheapest quote always the risky one?
Not always, but a quote 30–40% below the others usually assumes a lower yield, thinner finish or less test coverage. Ask which. A field failure costs far more than the difference.

Does panelization really change the price?
Yes. A 10 mm change in board size can drop the array from 20-up to 15-up — 25% fewer boards per panel, and about a third more laminate per board. It is one of the few cost levers available without changing the design.

Can NRE be waived?
It can be amortized into the unit price or credited against a follow-on order. It is rarely free — someone pays for the fixture and the programming.

What to send for an accurate quote

• Gerber or ODB++ package
• Stackup and impedance requirements, if any
• Laminate and finish specification
• Quantity breaks you actually plan to order
• Acceptance class and any customer-specific standard
• Delivery destination and required date

Send those six items and a fabricator can quote without guessing. Request a line-item quote with panel utilization shown, or start with our RFQ template to make sure nothing is missing.

Reviewed by the Benchuang process engineering team.
